Product Description

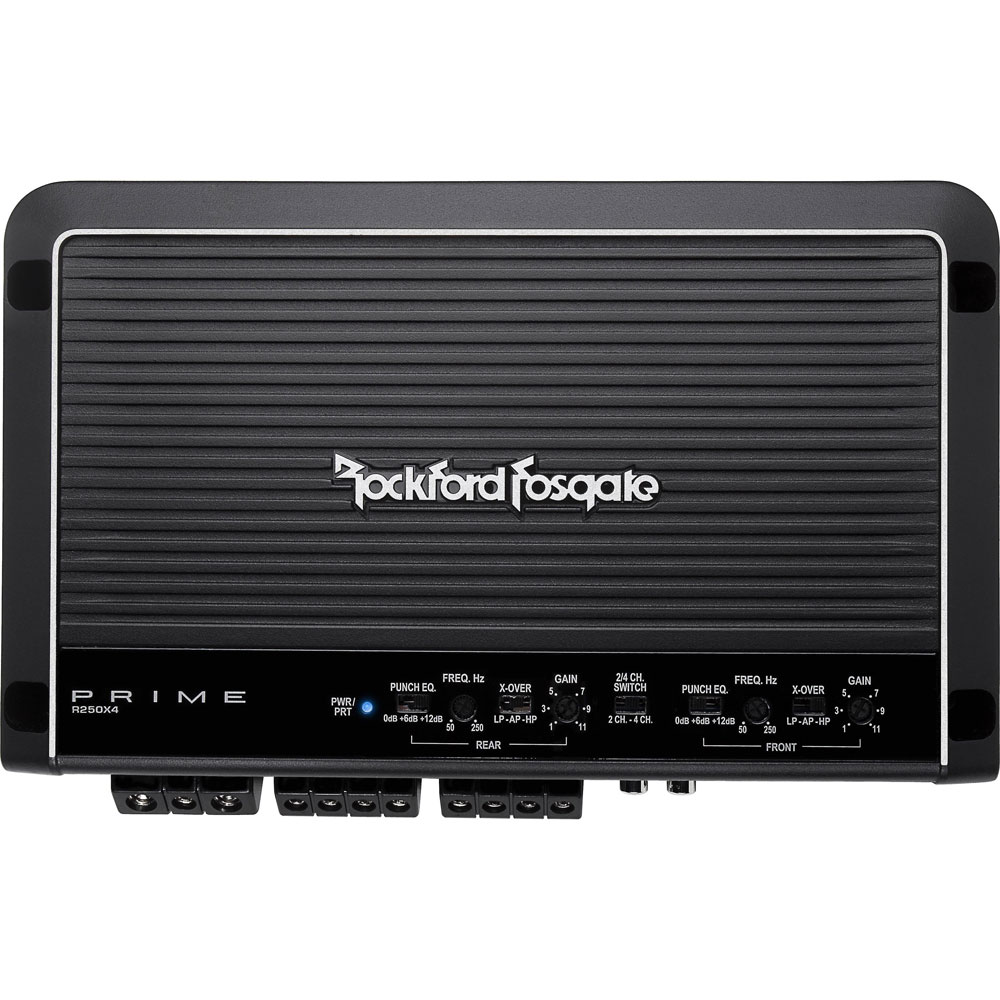

• 250W Prime-Series 4-Channel Class-A/B Car Amplifier
• Power Rating:
  • 4 Ohm: 40 Watts x 4 Channel
  • 2 Ohm: 60 Watts x 4 Channel
  • 4 Ohm Bridged: 125 Watts x 2 Channel


• Signal to Noise Ratio: 100 dB
• Channel Separation: 50 dB
• Variable High-Pass Filter (50 Hz - 250 Hz, Butterworth 12 dB/Octave)
• Variable Low-Pass Filter (50 Hz - 250 Hz, Butterworth 12 dB/Octave)
• CEA-2006 Compliant Amplifier
• MOSFET Power Supply
• LED Power (Green) & Protect (Red) Indicators
• Variable Bass Boost (0 - +12 dB Bass Boost at 45 Hz)
• Soft Start Turn-On
• 4/2 Channel Switch
• 50 Amp In0Line Fuse Is Highly Recommended
• Heavy Duty Cast Aluminum Alloy Heat-Sink For Extreme Heat Dissipation
• Dimensions: 11-1/4"(L) x 6-3/4"(W) x 2"(H)
