Product Description

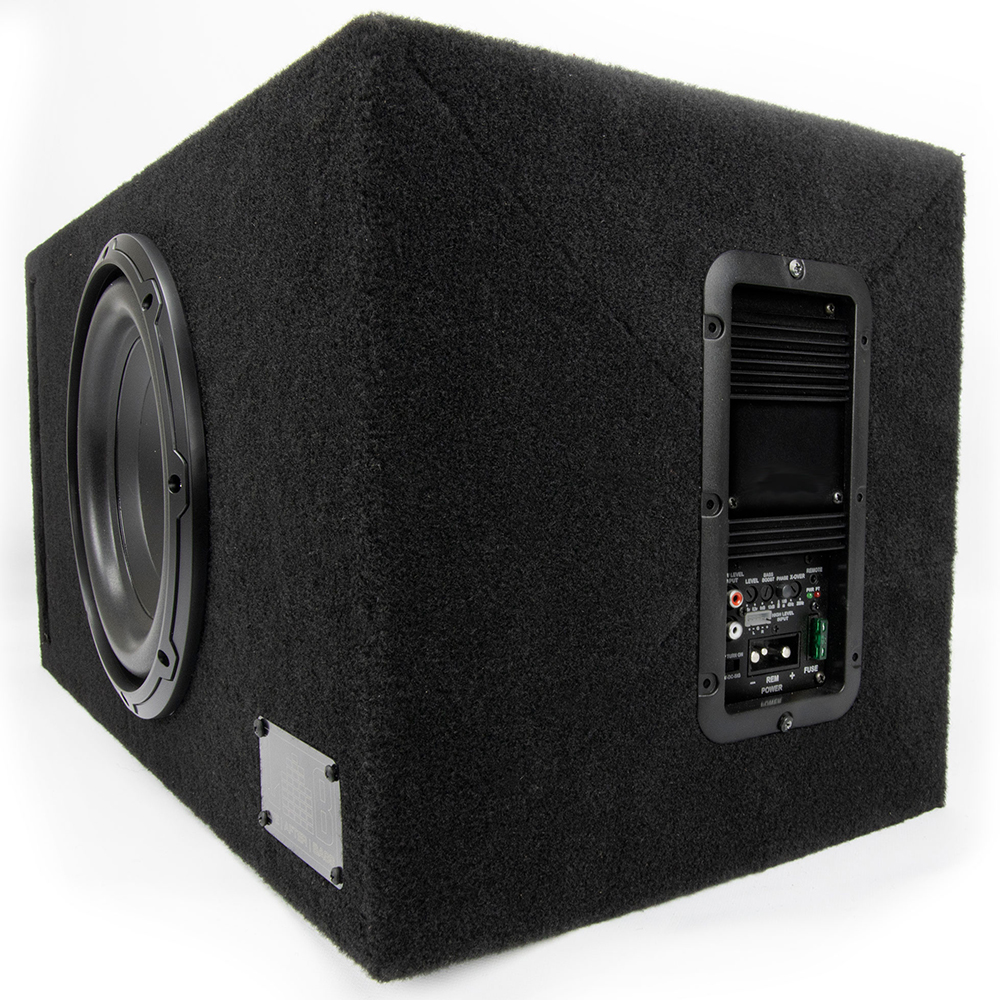

LAB SlapBox+™ enclosures are an “all-in-one” solution when adding bass to any aftermarket or factory sound system. Each SlapBox+™ enclosure is manufactured with industrial grade medium density fiberboard (MDF) and wrapped in premium black upholstery. A complimenting class D amplifier is flushed into the side of each enclosure, with variable crossovers and remote bass control. Each enclosure, amp and subwoofer are matched for maximum output and efficiency.

Vented Enclosure

• LAB SlapBox™ 1.20 ft^3 ported MDF subwoofer box
• Designed and optimized for a single 10" JL Audio® W0v3 woofer
• 1.20 cu. ft. tuned @ 33Hz
• Constructed of 0.75" CNC-cut high-grade MDF
• High-grade automotive black carpet
• Made in California, U.S.A.

Class-D Amplifier

• Flush-mounted on side of enclosure
• Unbalanced low-level RCA inputs
• High level 10 volt inputs
• Selectable amp turn-on selection with Remote/DC Input/Signal Sense
• 210W RMS @ 4 ohms
• Adjustable level control at 0.2v – 6v
• Bass boost at 0dB – 12dB
• Phase control at 0 – 180 degrees
• Quick connect Power/Remote/Ground Plug
• Variable crossover adjustments at 40Hz – 200Hz
• Visual protection circuit with DC Offset/Short Circuit/Thermal Over Load
• Bass remote with 3.5mm bass remote cable

10" Subwoofer

• JL Audio 10-Inch W0v3 Series
• Power Handling: 300W RMS
• Recommended Power Range: 75 - 300 watts
• Impedance: Single 4-Ohm
• Mineral-filled, polypropylene cone woofer for excellent durability
• Large roll surround for generous amounts of excursion
• Elevated frame cooling brings air directly to the voice coil
• Designed for compact sealed enclosures or medium-sized ported enclosures
• Large excursion for louder bass and less distortion
• DMA Optimized motor system reduces distortion and tight, clean bass
• Lead wire woven into spider for added strength
• Metallic silver frame finish
• 2.0" High temperature voice coil
• Mounting depth: 4.90"
• Cutout dimensions: 9.0625"
• Free Air Resonance (Fs): 32.09Hz
• Sensitivity: 84.07dB
• Xmax: 11.4mm
• Reference Efficiency (no): 0.1500%
• Frequency response: ~26 ~ 250 Hz

Dimensions: 26"W x 13"H x 12.5"D
