Product Description

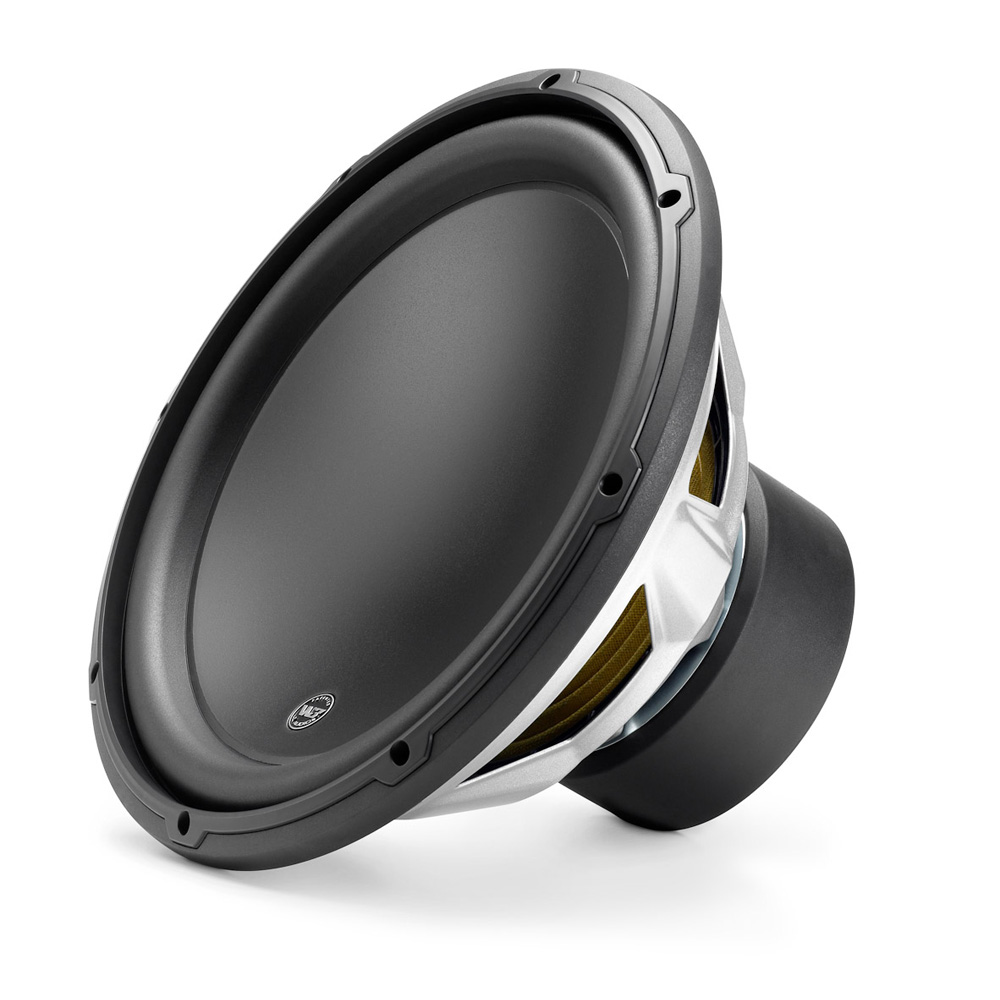

• 13.5" W3v3 Series Subwoofer Driver
• Power Handling:
  • RMS: 600 watts
• Recommended Power Range: 150 - 600 watts
• Impedance: Single 4-Ohm
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
• Stamped steel basket
• Customization trim ring
• Floating-cone attach method
• Highly linear, DMA-Optimized motor system
• Insert molded suspension, coil and terminal sub-assembly
• Patented vented reinforcement collar (VRC®)
• Elevated frame cooling design
• Nickel plated brass spring terminals
• Engineered lead-wire design and attachments
• Precision-built in USA at JL Audio Miramar, Florida factory
• Mounting depth: 7.63 "
• Cutout dimensions: 12.5625 "
• Free Air Resonance (Fs): 23.66 Hz
• Sensitivity: 87.90 dB
• Xmax: 15.5 mm
• Reference Efficiency (no): 0.3700%
• Frequency response: ~20 ~ 200 Hz
• SKU # 92157
• 1-Year Warranty
