Product Description

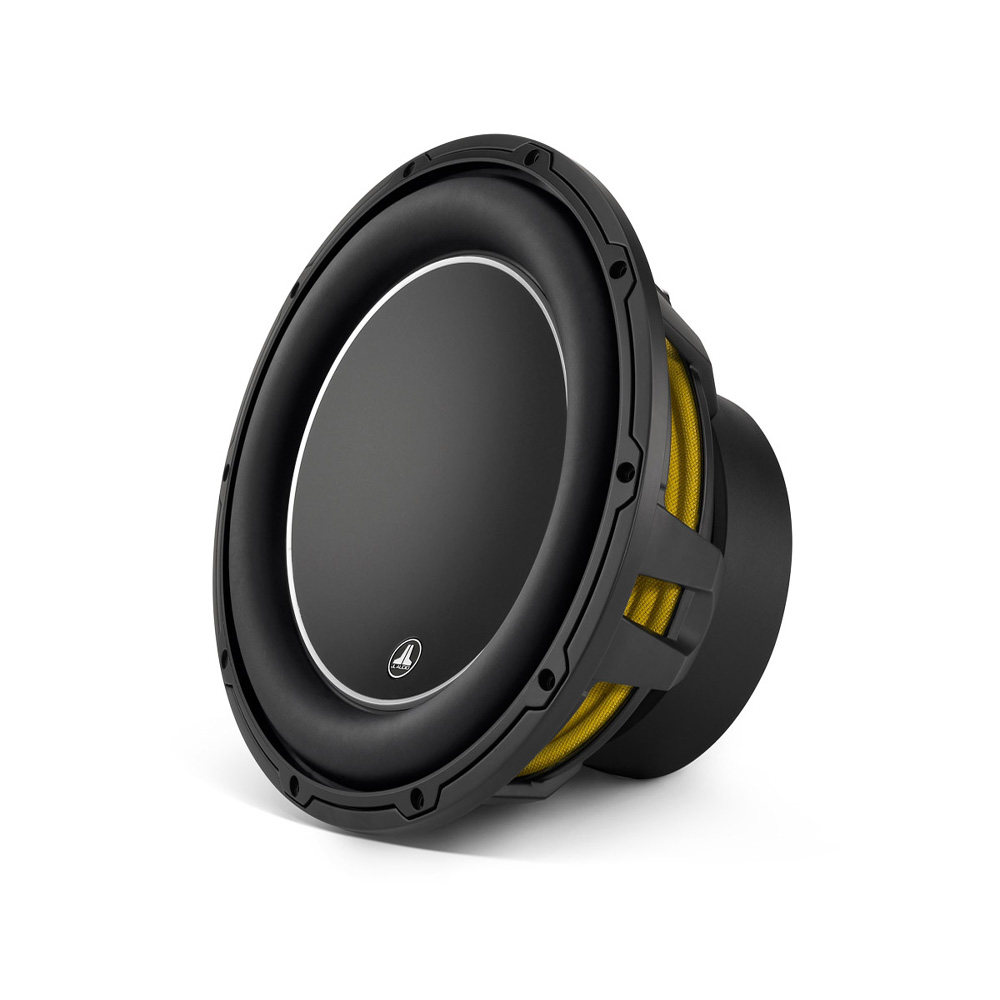

• 12" W6v3 Series Subwoofer Driver
• Power Handling:
  • RMS: 600 watts
• Recommended Power Range: 200 - 600 watts
• Impedance: Dual 4-Ohm
• Injection-molded, mineral-filled polypropylene cone
• Durable rubber surround
• Large-diameter, progressive roll spider
• Satin black cast alloy basket
• Silver accent ring around cone
• Customization trim ring
• Floating-cone attach method
• Massive forced-air-cooled aluminum alloy frame
• Highly linear, DMA-Optimized motor system
• Elevated frame cooling design
• Patented pole-vent airflow control
• Terminal jumper wire system
• Engineered lead-wire design and attachments
• Precision-built in USA at JL Audio's Miramar, Florida factory
• Mounting depth: 7.52 "
• Cutout dimensions: 11.02 "
• Free Air Resonance (Fs): 26.919 Hz
• Sensitivity: 85.4 dB
• Xmax: 19 mm
• Reference Efficiency (no): 0.1100%
• Frequency response: ~20 ~ 200 Hz
• SKU # 92141
• 1-Year Warranty
