Product Description

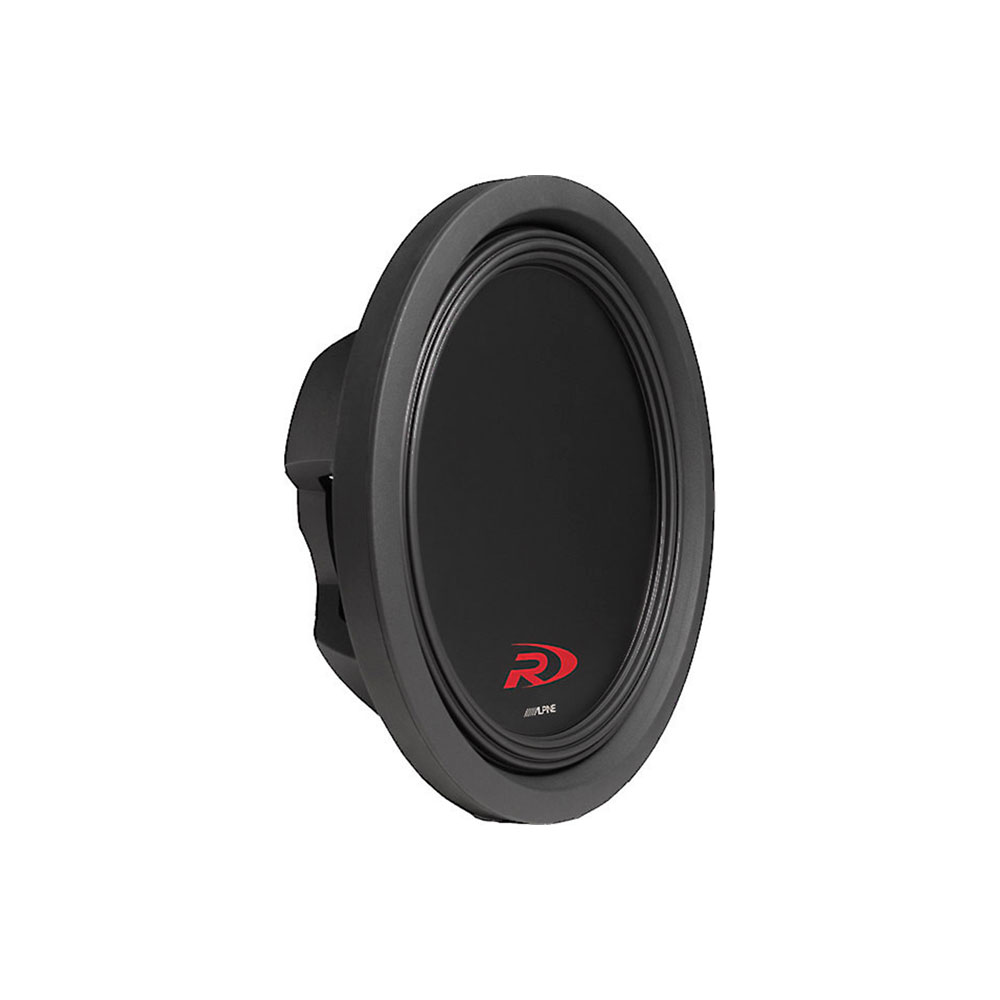

• 12" Single 4 Ohm Type-R Shallow-Mount Subwoofer
• Power Handling:
  • Peak: 1,800 watts
  • RMS: 600 watts


• Impedance: 4 Ohms
• Aluminum woofer cone
• Injection Molded Santoprene rubber surround
• High-Amplitude Multi-Roll (HAMR) suspension results in the highest X-max and SPL output in its category
• Thin design allows for installation in compact areas
• FEA-Optimization allows for maximum linearity, greatly reduces distortion, and improves power handling and output
• Vented voice coil heat sink, and airflow management system keeps subwoofer cool, while reducing distortion
• 4" diameter single layer edge-wound ribbon wire voice coil
• Unique spider and pass-through gap design, provide over 50mm of peak-to-peak excursion
• Neodymium 35SH magnet structure
• Frequency response: 26-200 Hz
• Sensitivity: 84dB
• Top Mount Depth: 3-1/2"
