Product Description

Product Features:
• 6.5" Evolution C5 Series 3-way Component Car Speakers
• Power Handling:
  • Peak: 450 watts per set / 225 watts per channel
  • RMS: 150 watts per set / 75 watts per channel
• Recommended Power Range: 25 - 150 watts per channel
• 6.5" Woofer Specifications:
  • Mineral-Filled Polypropylene Cone
  • Butyl Rubber Surround
  • Cast Alloy Frame/Basket
  • Elevated Frame Cooling
  • Ferrite Woofer Magnet
  • 1.00" Voice Coil on Kapton Former
  • Low-Profile, Symmetrical Roll Spider
  • Dynamic Motor Analysis (DMA) Optimized Motor
• 4" Mid-Range Specifications:
  • Mineral-Filled Polypropylene Cone
  • Butyl Rubber Surround
  • Ferrite Woofer Magnet
  • 1.00" Voice Coil on Kapton Former
  • Low-Profile, Symmetrical Roll Spider
  • Dynamic Motor Analysis (DMA) Optimized Motor
• 0.75" Tweeter Specifications:
  • Silk Soft Dome Tweeter
  • Ferrofluid Cooling and Damping
  • Neodymium Magnet
• 2-way Crossover Network w/ 2nd Order Low-Pass and 2nd Order High-Pass Circuit
• Premium Mylar Capacitors w/ Air-Core Inductors
• 4-Position Adjustable Tweeter Output Level
• 3-position Mid-range Presence Control
• Polyswitch Tweeter Protection
• Black Steel Mesh Grille with An Electroformed JL Audio Logo Included
• Woofer Dimensions:
  • Top-mount depth: 2.54"
  • Cutout Dimensions: 5.56"
• Mid-Range Dimensions:
  • Top-mount depth: 1.62"
  • Cutout Dimensions: 3.625"
• Tweeter Dimensions: (Flush Mount)
  • Top-mount depth: 0.56"
  • Cutout Dimensions: 1.50"

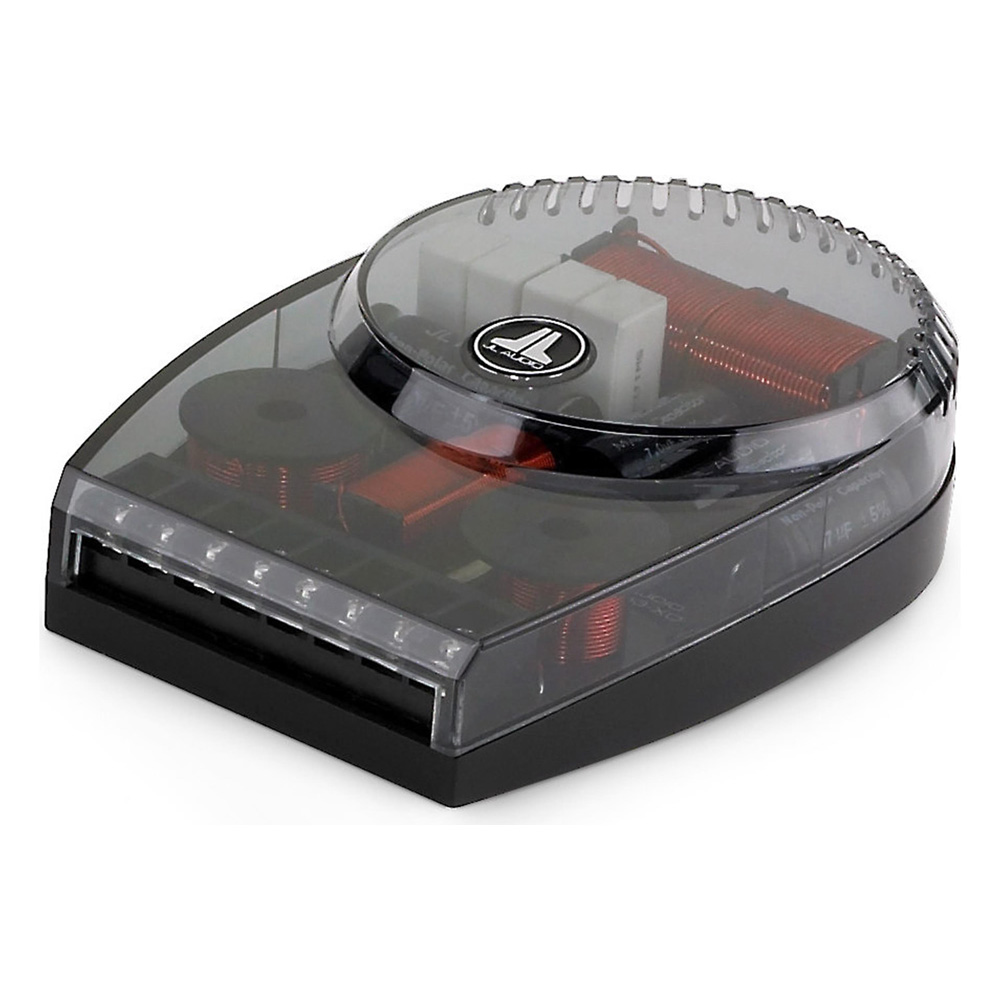

• Crossover Dimensions:
  • Width: 4.17"
  • Height: 1.68"
  • Depth: 5.86"
• Nominal Impedance: 4 ohm
• Efficiency: 89.5 dB @ 1 watt / 1 meter
• Frequency Response: 48 Hz - 25 KHz 3 dB
• SKU # 99125
• 1-Year Warranty
