Product Description

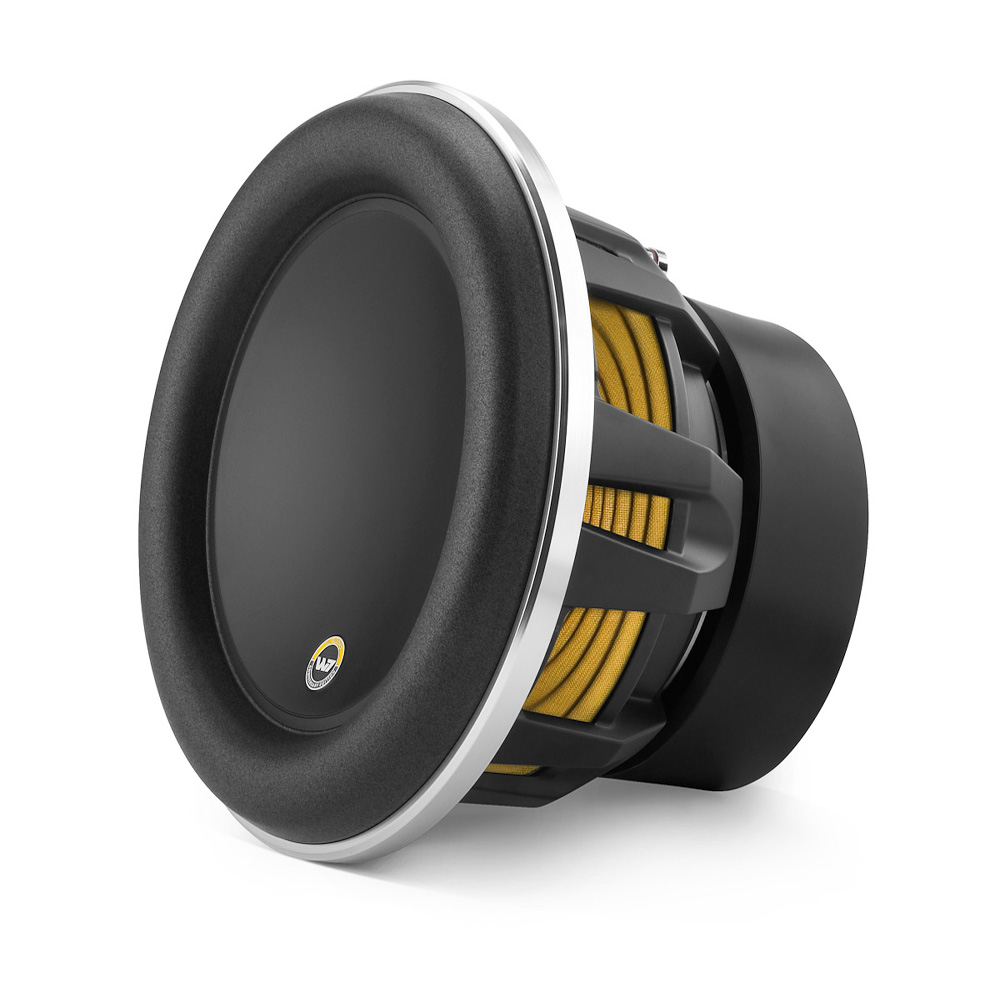

• 10" W7AE Series Subwoofer Driver
• Power Handling:
  • RMS: 750 watts
• Recommended Power Range: 300 - 750 watts
• 10th Anniversary Edition:
  • Satin-Black Powdercoated Basket
  • Bright Anodized Surround Clamp Ring
  • Anniversary Edition Cone Badge
  • Anniversary Edition Terminal Label
• Impedance: Single 3 Ohm
• Polypropylene W-Cone assembly
• Polyester foam OverRoll surround
• Floating-cone attach method
• Plateau-reinforced spider attachment
• Radially cross-drilled pole piece
• Massive forced-air-cooled aluminum alloy frame
• Highly linear, DMA-Optimized motor system
• Huge diameter, progressive roll spider
• Co-extruded double lead wires
• Dual ultra-long voice coils
• Precision-built in USA at JL Audios Miramar, Florida factory
• Mounting depth: 8.0 "
• Cutout dimensions: 8.74 "
• Free Air Resonance (Fs): 30.6 Hz
• Sensitivity: 84.3 dB
• Xmax: 23 mm
• Reference Efficiency (no): 0.1700%
• Frequency response: ~20 ~ 200 Hz
  • 85 Hz LPF recommended
• SKU # 92114
• 1-Year Warranty
